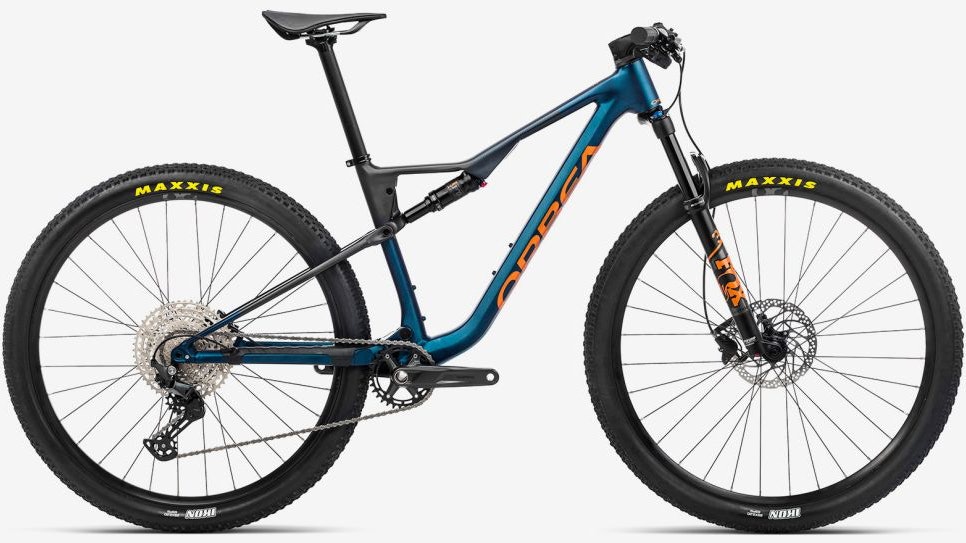

Orbea Oiz H30 Bike 2023 Specifications & Reviews
Are you planning to buy Orbea Oiz H30 Bike 2023 and Get home? Firstly, find out the specifications & key elements of the Orbea Oiz H30 Bike 2023 like price, frame, fork, color, intended use and others from here. Do look below Orbea Bicycles for its price and customer reviews for better reference.
Orbea Oiz H30 Bike 2023 Price
Before knowing its specifications, the mindset of common people runs to check the cost of Orbea Oiz H30 Bike 2023. So, here is the Orbea Oiz H30 Bike 2023 price range is $3,299.00 in USA.
$2,804.00
Orbea Oiz H30 Bike 2023 Features
It's impossible to own a vehicle without knowing its features. Hence, check down the features of the Orbea Oiz H30 Bike 2023 below:
- Hydroformed aluminum frame with internal cable routing, Boost hub spacing on the rear, a press-fit bottom bracket, and integrated chain stay protection
- Shimano Deore M6100 12-speed drivetrain performs well in demanding terrain
- Shimano MT201 hydraulic disc brakes provide highly reliable stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- UFO pivotless rear triangle that removes weight and flex for a lighter and stiffer setup
Orbea Oiz H30 Bike 2023 Specifications
It's impossible to own a vehicle without knowing its specifications. Hence, check down the specifications of the Orbea Oiz H30 Bike 2023 below:
Specification
| Frame | Hydroformed Aluminum |
| Fork | Fox 32 Float Rhythm 120mm Remote Push-Unlock 15x110mm |
| Rear Shock | Fox i-Line DPS Performance 120mm Remote Push-Unlock EVOL 190x45 |
| Headset | FSA 1-1/2" Integrated Aluminum Cup |
| Shifters | Shimano Deore M6100, 12-Speed |
| Front Derailleur | |
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Crankset | Shimano MT511 32T |
| Bottom Bracket | - |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M6100 10-51T |
| Brakes | Shimano MT201 Hydraulic Disc |
| Wheelset | Alloy, Tubeless, 32H, Boost Hubs |
| Tires | Maxxis Ikon 29x2.2" FB 60TPI Dual |
| Handlebar | Alloy, 31.8mm, Flat, 740mm Wide, 9° Sweep |
| Stem | OC Mountain Performance MP21, -6° |
| Grips/Bar Tape | The Grippiest Grips |
| Seatpost | Alloy, 31.6mm, Setback 0 |
| Seatclamp | Bolt-Type |
| Saddle | Selle Italia Model X FecAlloy Rail 145x248mm |
| Intended Use | XC, Trail |
Orbea Oiz H30 Bike 2023 Geometry in Metric
It's impossible to own a vehicle without knowing its Geometry. Hence, check down the geometry of the Orbea Oiz H30 Bike 2023 below:
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 410 | 432 | 460 | 510 |
| B: Effective Top Tube | 568 | 594 | 619 | 645 |
| C: Stack | 596 | 600 | 610 | 619 |
| D: Reach | 425 | 450 | 472 | 496 |
| E: BB Height | 333 | 333 | 333 | 333 |
| F: BB Drop | 42 | 42 | 42 | 42 |
| G: Head Tube Length | 90 | 95 | 105 | 115 |
| H: Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| J: Standover Height | 729 | 743 | 746 | 743 |
| K: Chainstay Length | 436 | 436 | 436 | 436 |
| L: Wheelbase | 1142 | 1169 | 1195 | 1223 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 60 mm | 75 mm | 75 mm | 90 mm |
| Handlebar Width | 740 mm | 740 mm | 740 mm | 740 mm |
Orbea Oiz H30 Bike 2023 Geometry in Inch
It's impossible to own a vehicle without knowing its Geometry. Hence, check down the geometry of the Orbea Oiz H30 Bike 2023 below:
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 16.1 | 17.0 | 18.1 | 20.1 |
| B: Effective Top Tube | 22.4 | 23.4 | 24.4 | 25.4 |
| C: Stack | 23.5 | 23.6 | 24.0 | 24.4 |
| D: Reach | 16.7 | 17.7 | 18.6 | 19.5 |
| E: BB Height | 13.1 | 13.1 | 13.1 | 13.1 |
| F: BB Drop | 1.7 | 1.7 | 1.7 | 1.7 |
| G: Head Tube Length | 3.5 | 3.7 | 4.1 | 4.5 |
| H: Head Tube Angle | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| J: Standover Height | 28.7 | 29.3 | 29.4 | 29.3 |
| K: Chainstay Length | 17.2 | 17.2 | 17.2 | 17.2 |
| L: Wheelbase | 45.0 | 46.0 | 47.0 | 48.1 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 60 mm | 75 mm | 75 mm | 90 mm |
| Handlebar Width | 740 mm | 740 mm | 740 mm | 740 mm |
SUGGESTED RIDER HEIGHT
It's impossible to own a vehicle without knowing the Rider Height. Hence, check down about the rider height of the Orbea Oiz H30 Bike 2023 below:
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 61.1" - 66.9" 155 - 170 cm | 65" - 70.9" 165 - 180 cm | 70.1" - 74.8" 178 - 190 cm | 72.8" - 78" 185 - 198 cm |
